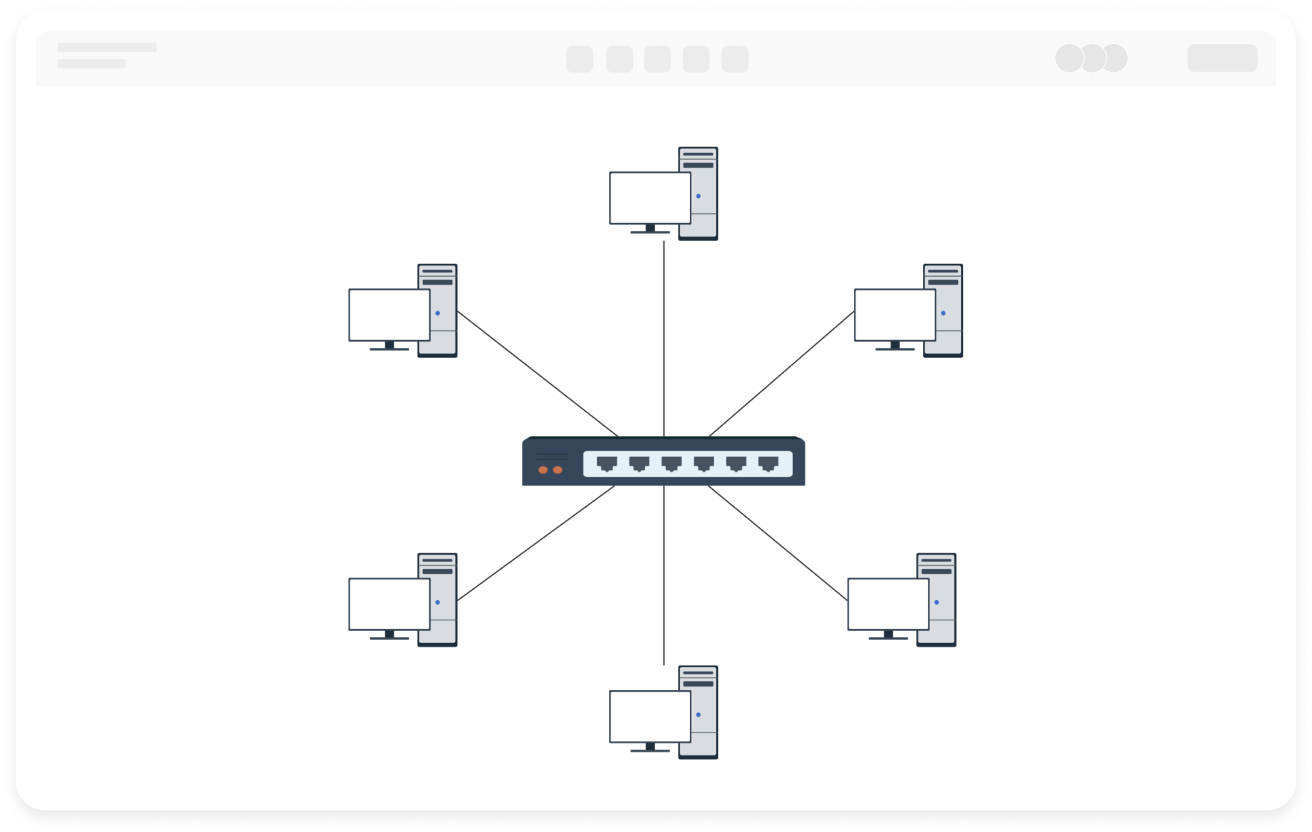

The star topology structure is a mesh structure centered around a central node, with all peripheral devices connected to it through independent links. This architecture achieves controllable allocation of network resources through centralized management, becoming one of the mainstream solutions for modern Local Area Networks (LANs).

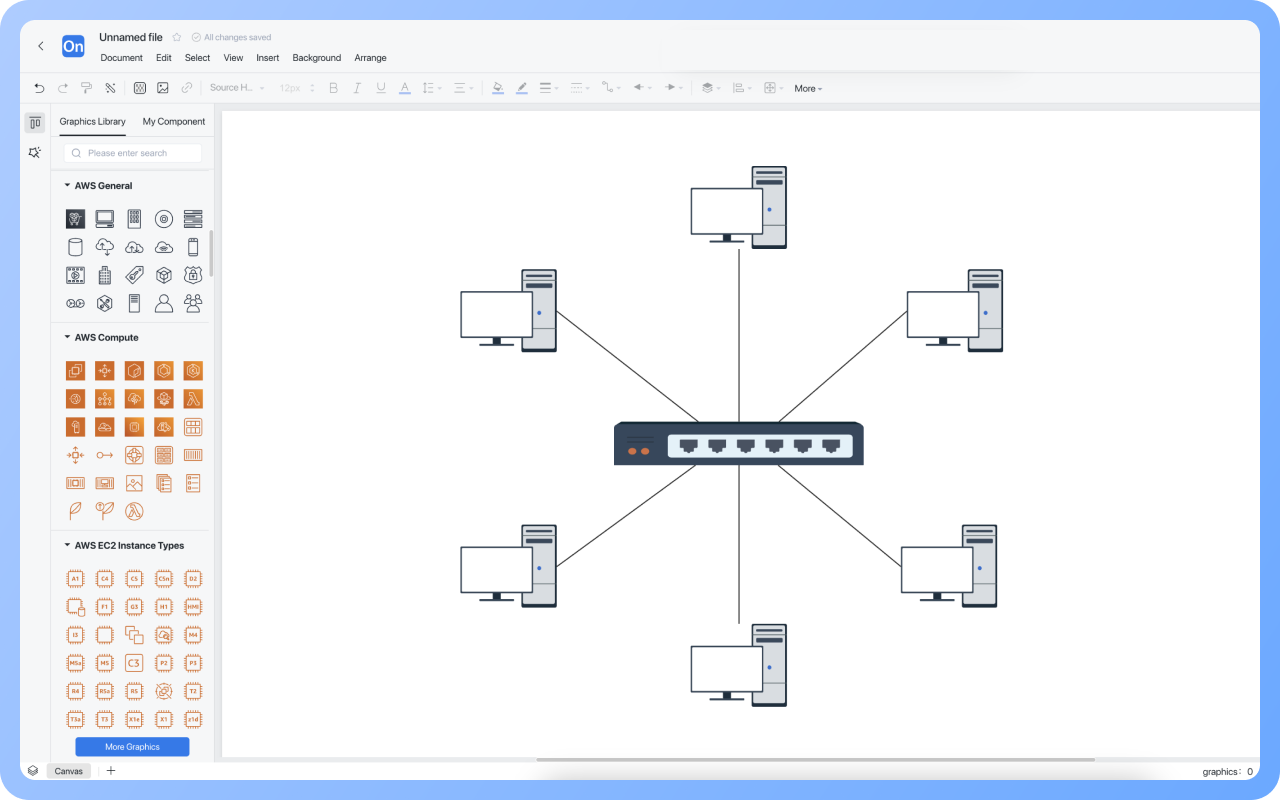

ProcessOn supports online creation of star topology diagrams and offers a large number of star topology diagram templates and examples for easy drawing of professional and aesthetically pleasing star topology diagrams.
Supports real-time multi-user co-creation with shareable links for instant information transfer
Automatically generates graphics from text input and applies style enhancements
Prebuilt themes with full customization for personalized designs
Supports icons, images, labels, LaTeX formulas, code blocks, links, attachments and more
Export: PNG, VISIO, PDF, SVG | Import: VISIO, Mermaid
Real-time cloud storage, multi-device sync, version history, and secure data protection
1. All data flows must pass through a central node (such as a switch or hub) to enable unified traffic monitoring, access control, and security policy deployment.
2. Failure of a single node or link will not affect the operation of other devices.
3. New nodes only need to connect to the central device, without modifying existing links.
1. All devices rely on core equipment such as switches and routers. If these fail or lose power, the network will be completely disrupted.
2. Hardware and deployment costs are high, requiring central equipment and more cables.
3. Central nodes have a fixed number of ports and performance limitations. As the number of nodes increases, management complexity increases.

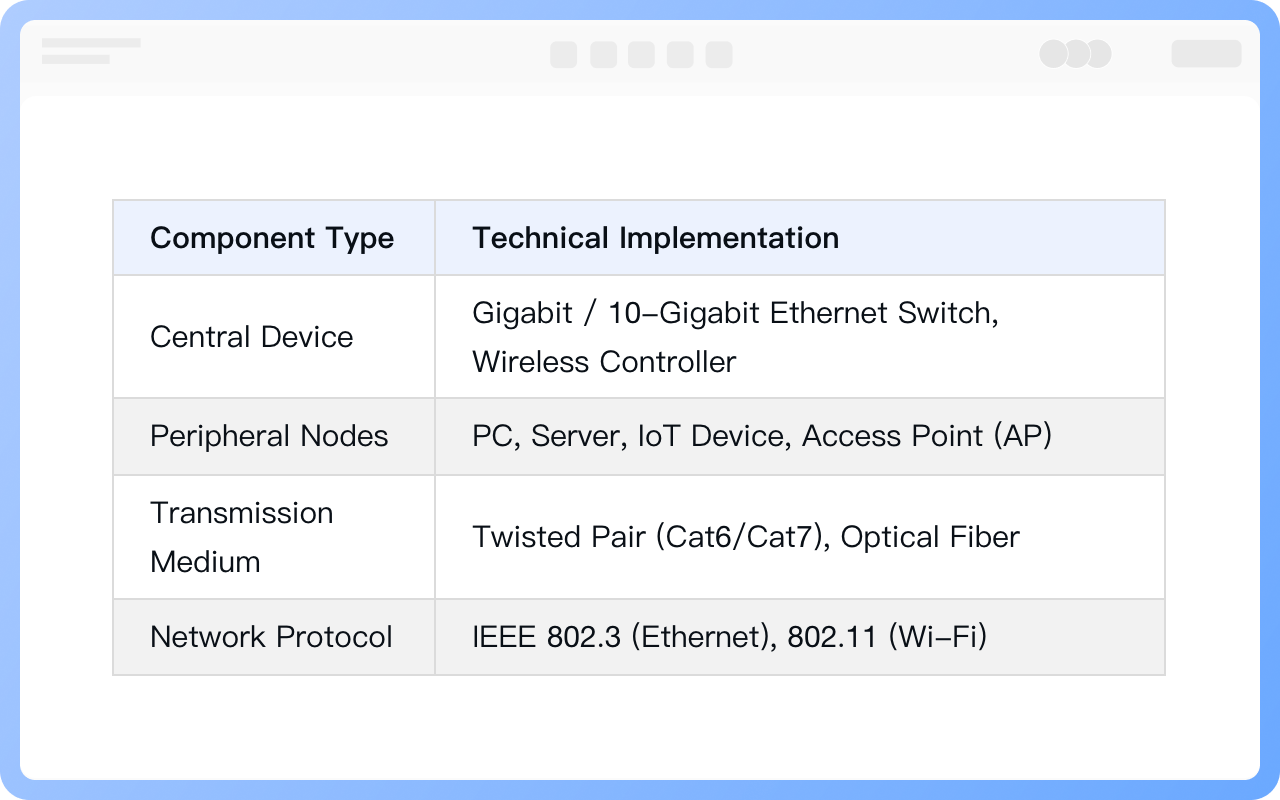

Central device: Typically a switch or hub, it serves as the central hub of the network.
Peripheral nodes: Devices such as computers, servers, printers, and IP phones connect to the central node via independent links.
Transmission media: Physical lines used to connect the central node and peripheral devices, such as twisted pair cables or fiber optic cables.
Network protocols: Such as the IEEE 802.3 Ethernet protocol, ensure the correct transmission and reception of data in a star topology.

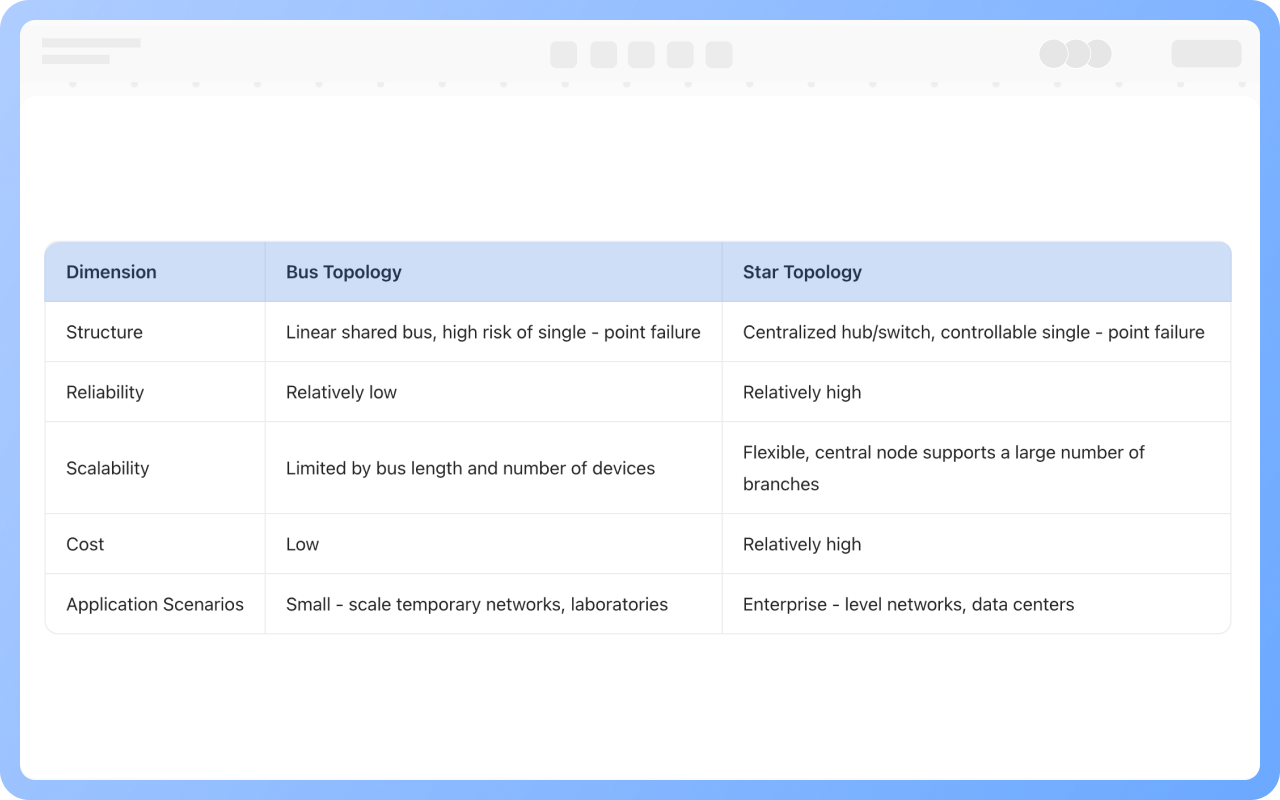

In a bus topology, all nodes share a single communication line, transmitting data in a broadcast-style manner. This reduces costs but reduces reliability. A bus failure can paralyze the entire network. This makes it suitable for small networks or specific industrial scenarios.
A star topology centers around a central node, through which data must be relayed. This allows for strong scalability, and a single node failure does not affect other nodes. However, a central node failure can disrupt the entire network. This makes it widely used in scenarios requiring centralized management, such as enterprise office networks.
No, a mesh topology is the most reliable.
No. A central node failure can still cause a network-wide outage, but redundancy (such as dual-core switches) can mitigate this risk.
Not necessarily. Wi-Fi networks also use a star topology, with the wireless access point (AP) acting as the central node, and end devices (such as mobile phones) connected via wireless signals.
When device A sends data to device B, the data first goes to the central node, which then forwards it to device B.
Star topologies are suitable for home/small office networks, enterprise networks, and data centers.
Clearly define the node devices and connection relationships, and select a symbol library (such as the Cisco icon).
